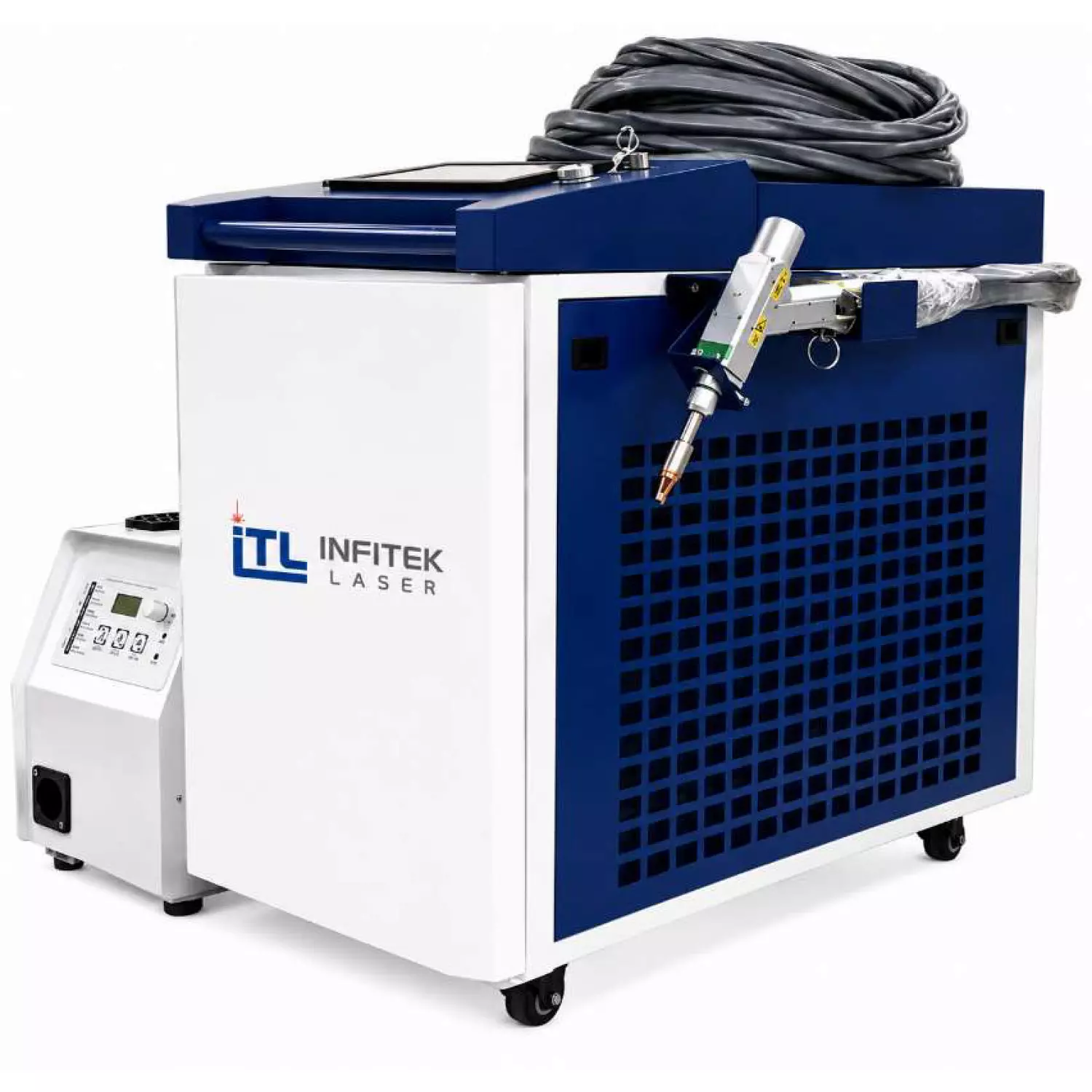

Fiber Welding Machine
Fiber Welding Machine Details
The Infitek Fiber Laser Welding Machine is an advanced welding solution designed for high-speed, precision, and strong welding performance. It is widely used for welding stainless steel, mild steel, carbon steel, galvanized sheets, aluminum, brass, and other metal materials. The machine provides clean weld seams with minimal deformation and requires very little post-processing, making it ideal for industries such as kitchen equipment, metal fabrication, advertising, furniture, elevators, and automotive components.
Features & Benefits
- HMI Human Machine Interface.
- Chiller Power on chiller by pressing and power off chiller by r
- Laser Power on laser by pressing and power off laser by re- pressing
- Wire Feeder Included.
- Multi wobble mode.
- Compact in size.
- High quality laser welding head.
- Water Level: level of cooling water.
- Drainage: drainage outlet.
- Handheld Laser head.
- Temperature Control (Normal/Low Temp): cooling of laser head.
Applications/Material:
MS, SS, BRASS, copper 4 IN 1 (Cutting, Welding, Seam Cleaning, Surface Cleaning
Technical Parameters
| Laser Power | 1.5kw, 2kw, 3kw |
| Laser source | MAX, JPT, Raycus, IPG |
| Laser Power Life | >=100000 Hrs. |
| Input power | AC 220V±22V 50Hz/60Hz 32A |
| Focusing focal length | 100um |
| With feeling | Up to 5 mm |
| Without Feeling | 0.8 mm |
| Power Consumption | 10 KVA |
| Cooling | Water Chiller (24 Deg.) |
| Power stability | ±1.5% |
| Approx. Weight | 150 KG |
| Machine Size | 890mm*1120mm*815mm |
