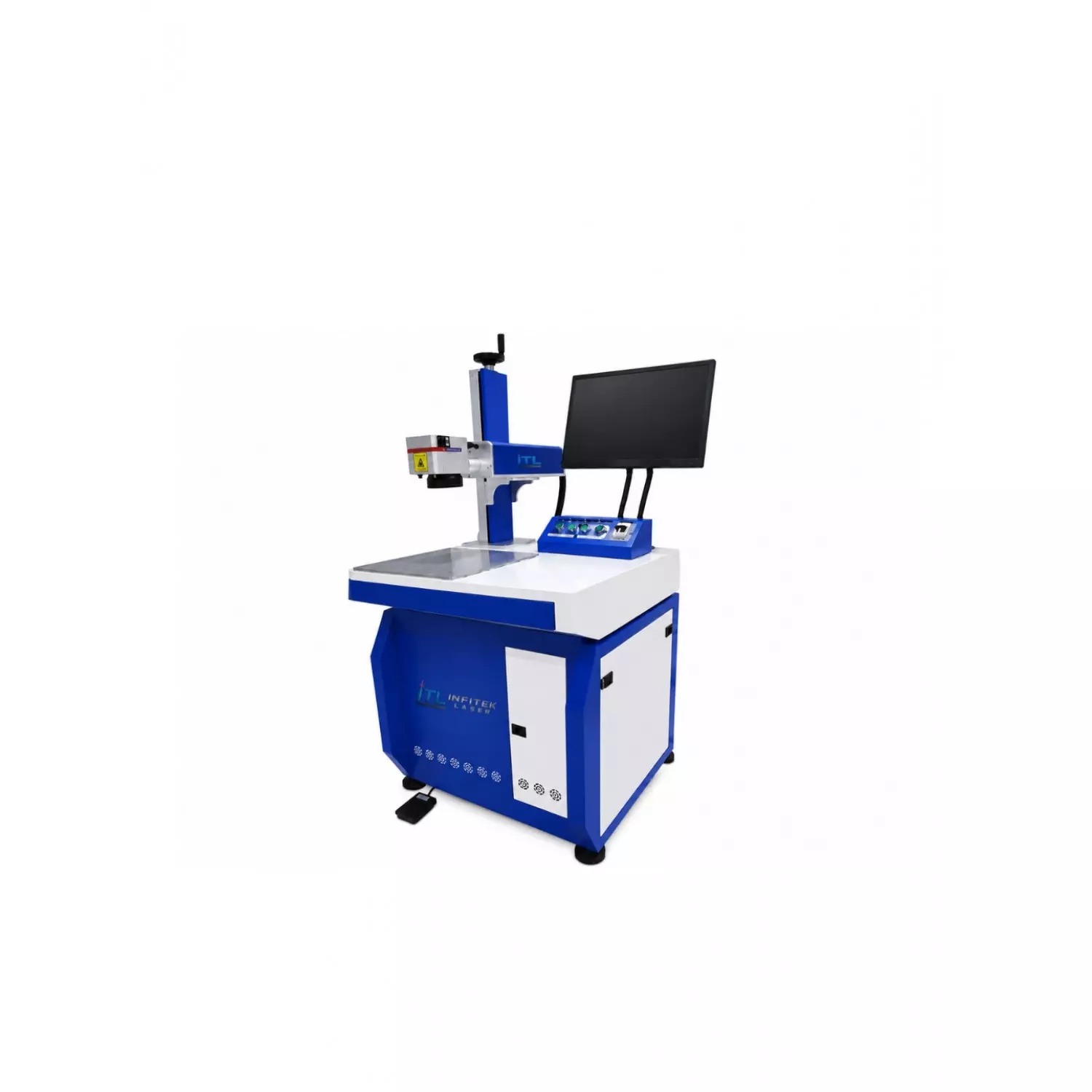

Fiber Marking Machine (20w / 30w / 50w)
Fiber Marking Machine (20w / 30w / 50w) Details
Small details can carry big value in manufacturing, and that’s exactly where our Fiber Marking Machine (20W / 30W / 50W) fits in. We manufacture and supply these machines from Ahmedabad, Gujarat, built for industries that need clean marking, sharp detailing, and fast production without any compromise.
This machine is designed for precise marking on metals like stainless steel, mild steel, brass, copper, aluminum, and also coated materials. From serial numbers on machine parts to logos on tools, QR codes on products, and branding on industrial components, the output stays crisp, permanent, and easy to read even after long-term use.
The 20W model is perfect for light marking work and small components where fine detail matters more than depth. The 30W version gives a balanced performance for both speed and depth, making it suitable for regular industrial marking jobs. The 50W machine is built for heavy-duty work where deeper engraving and faster output are required for large-scale production.

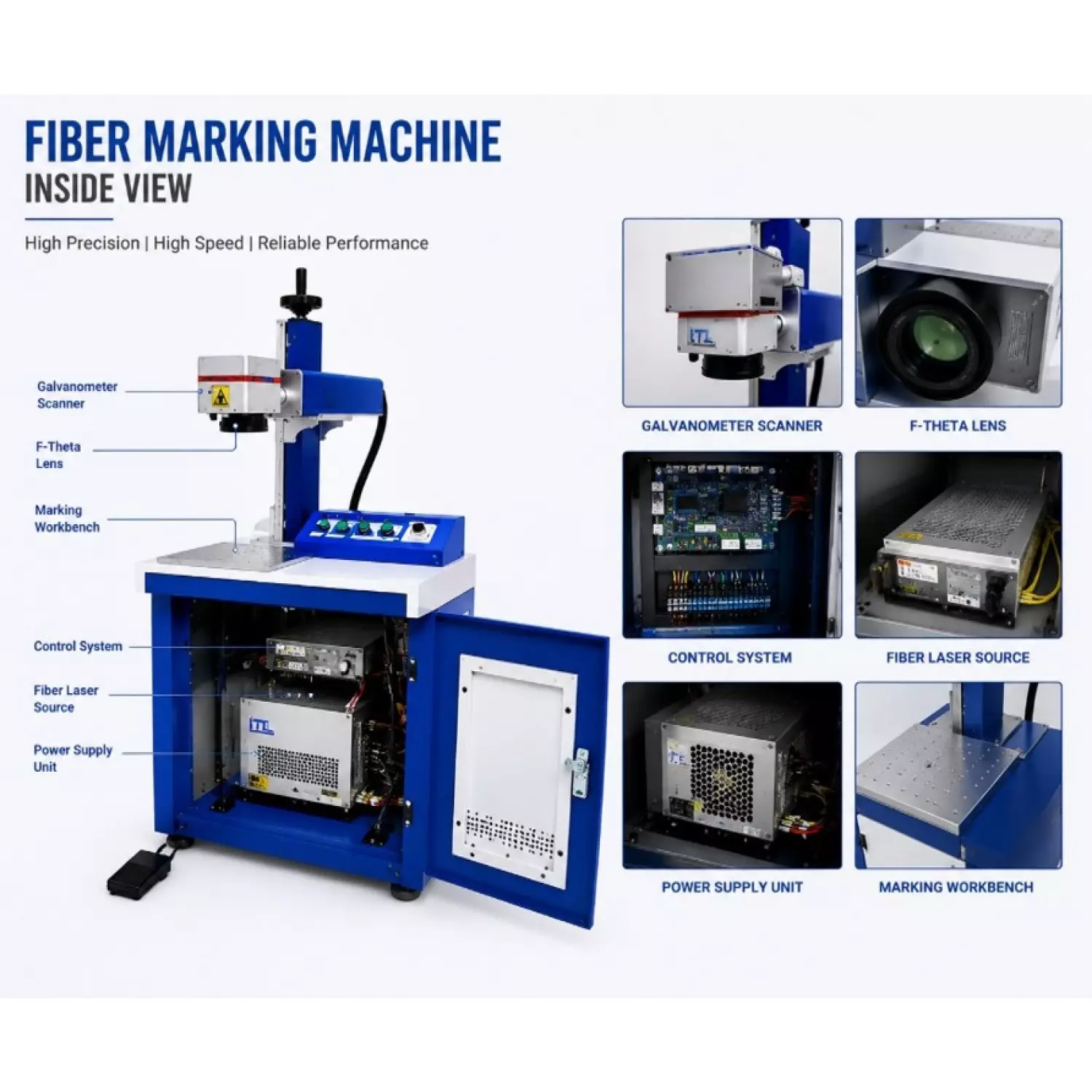

Inside the system, a stable fiber laser source produces a highly focused beam that interacts directly with the material surface. Since there is no physical contact, there is no tool wear, no material distortion, and almost zero maintenance compared to traditional methods. This makes production faster and more cost-efficient.
The machine is compact, easy to install, and simple to operate. Even new users can quickly understand the software, load designs, and start marking with minimal training. It’s widely used in manufacturing units, fabrication workshops, jewelry industries, automotive part suppliers, and tool marking applications.
Technical Specification :
| SPECIFICATION | MODEL |
|---|---|
| INFITEK_FFIBER LASER MACHINE | |
| LASER WAVELENGTH | 1064NM |
| MARKING AREA | 110MMX110MM 150MMX150MM 200MMX200MM |
| LASER POWER | 20W,30W,50W |
| LASER DEVICE | MAX |
| MARKING DEPTH | 0.05 ~ 0.5MM |
| MIN.LINE WIDTH | 0.01MM (0.0004”) |
| M2/ BEAM QUALITYM2 | <1.2 |
| MIN. LETTER | 0.2MM (0.008”) |
| POWER SUPLLY | 220V / 50Hz / 1KVA |
| MINIMUM LATTER SIZE | 1.0 mm (ENGLISH LETTER) |
| POWER ADJUSTMENT | 1 TO 100 % |
| MARKING LINE SPEED | 7000 MM/S |
| COOLING METHOD | AIR COOLING |
| SUPPORTED MATERIAL | Aluminum, MS, BRASS, SS |
| LEAD TIME | 7-10 DAYS |
| WARRANTY | ONE YEAR |
20W ENGRAVING DEPTH CAPABILITY
| Depth Depends on material, spped, frequency & number of passes | |
| MATEERIAL | APPROX DEPTH |
| STAINLESS STEEL | 0.02Mm-0.15mm |
| BRASS / COPPER | 0.02mm-0.15mm |
| ALUMINIUM | 0.03-mm-0.20mm |
| MILD STEEL | 0.03-mm-0.20mm |
| Note : For Deeper engraving, slow speed high power & multiple passes are recommended | |
30W ENGRAVING DEPTH CAPABILITY
| Depth Depends on material, spped, frequency & number of passes | |
| MATEERIAL | APPROX DEPTH |
| STAINLESS STEEL | 0.05Mm-0.30mm |
| BRASS / COPPER | 0.05mm-0.30mm |
| ALUMINIUM | 0.10-mm-0.50mm |
| MILD STEEL | 0.10-mm-0.50mm |
| Note : For Deeper engraving, slow speed high power & multiple passes are recommended | |
50W ENGRAVING DEPTH CAPABILITY
| Depth Depends on material, spped, frequency & number of passes | |
| MATEERIAL | APPROX DEPTH |
| STAINLESS STEEL | 0.1Mm-0.5mm |
| BRASS / COPPER | 0.1mm-0.5mm |
| ALUMINIUM | 0.2-mm-0.8mm+ |
| MILD STEEL | 0.2-mm-0.8mm+ |
| Note : For Deeper engraving, slow speed high power & multiple passes are recommended | |
From our facility in Ahmedabad, Gujarat, we supply Fiber Marking Machines (20W / 30W / 50W) across Gujarat and all over India, along with installation support and technical guidance. If someone needs fast, permanent, and professional-grade marking on metals, this machine range is a reliable choice for daily industrial work.
